H20 KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles Plastic Case Bimetallic Thermostat

H20 KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles Plastic Case Bimetallic Thermostat
H20 KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles Plastic Case Bimetallic Thermostat
H20 KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles Plastic Case Bimetallic Thermostat H20 KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles Plastic Case Bimetallic Thermostat H20 KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles Plastic Case Bimetallic Thermostat H20 KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles Plastic Case Bimetallic Thermostat H20 KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles Plastic Case Bimetallic Thermostat H20 KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles Plastic Case Bimetallic Thermostat H20 KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles Plastic Case Bimetallic Thermostat

تصویر بزرگ :  H20 KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles Plastic Case Bimetallic Thermostat

جزئیات محصول:
محل منبع: چین
نام تجاری: HENGHAO
گواهی: UL TUV CQC KC
شماره مدل: ب.و.ب.
پرداخت:
مقدار حداقل تعداد سفارش: 10000 قطعه
قیمت: USD 0.15~0.3PCS
جزئیات بسته بندی: 2000pcs
زمان تحویل: 10 ~ 15PCS
شرایط پرداخت: t/t
قابلیت ارائه: 1000000 قطعه
مخاطب

H20 KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles Plastic Case Bimetallic Thermostat

شرح
چرخه حیات: 100000 چرخه ولتاژ و جریان: 250V 10A
نوع تماس: به طور معمول بسته یا به طور معمول باز است نوع سوئیچ: تنظیم مجدد اتوماتیک یا بازبینی دستی
دامنه دما: 50-150 ℃ مورد: پلاستیکی
برجسته کردن:

10 Amp resettable fuse thermostat,KW9700 bimetallic thermostat switch,H2O thermal protection switch

,

KW9700 bimetallic thermostat switch

,

H2O thermal protection switch

H20 KSD9700 10 Amp Resettable Fuse KW9700 Thermostat H21 Bimetallic Thermostat
The BW & BH series protectors offer reliable over-current and over-temperature protection with sealed construction, low internal resistance, silent operation, and automatic reset functionality. These thermostats respond to both temperature and current changes, activating when thresholds are exceeded to safely interrupt or restore circuit operation.

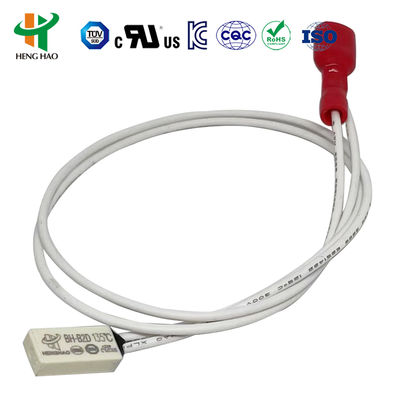

H20 KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles Plastic Case Bimetallic Thermostat 0
H20 Series Thermostat Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C. Custom reset temperatures available.
Life times 10000 cycles
Size L15mm W7.1mm H3.8mm
Lead wire #22 3266, end half tripping, length is 70mm (custom lengths available)
Certifications UL File no: E487478
CQC certificate no: CQC16002142880
TUV certificate no: B160592241002
H20 Series Thermal Protector Dimensions
Model Case Length(mm) Width(mm) Height(mm) Voltage & Current Lead wire
H20 Plastic 18.5 8 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, length is 70mm (custom available)
H21 Metal 18.5 7.3 3.8
H21 Metal 20 8 4 AC250V 20A #16 3135
BH-A1D Metal 15 6.6 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266, #22 3135, end 5mm half tripping, length is 70mm (custom available)

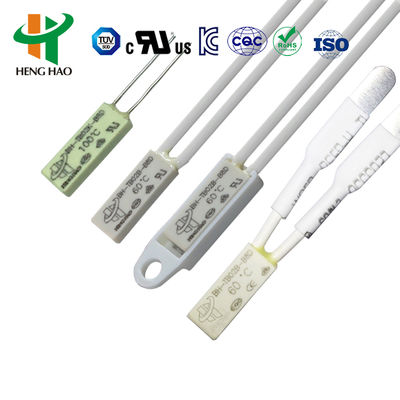

H20 KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles Plastic Case Bimetallic Thermostat 1
H20 Series Thermostat Applications
H21 series thermal protectors provide reliable security protection for various applications including:
  • 1.5 horsepower motors
  • Lighting devices
  • Inverter welding machines
  • Switch power supplies
  • Rechargeable battery packs
  • Portable power tools
  • Electric appliances
The reinforced versions (withstand pressure of 3.5MPa) are suitable for plastic-coated motor installations.
Temperature Code Reference
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
45 45℃ 115 115℃
50 50℃ 120 120℃
55 55℃ 125 125℃
Technical Specifications
Contact Closure resistance ≤50mΩ
Insulation resistance ≥100mΩ
Electric strength AC1500V/1min free from phenomena of break down and flashover

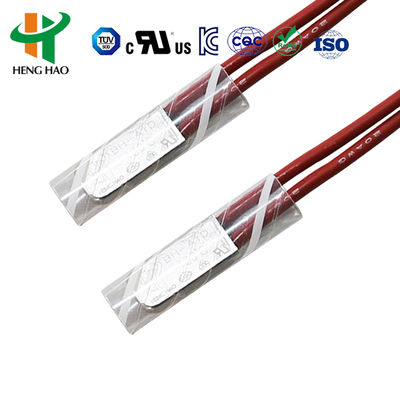

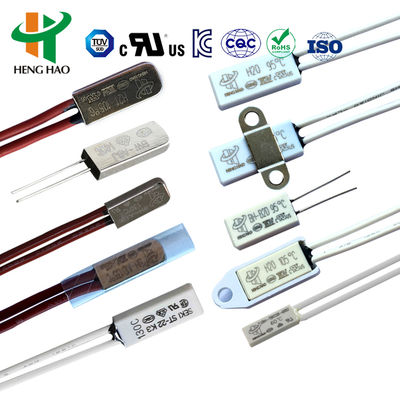

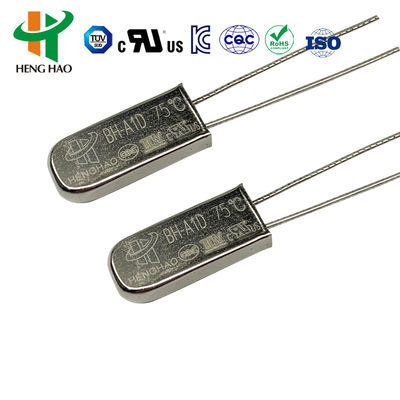

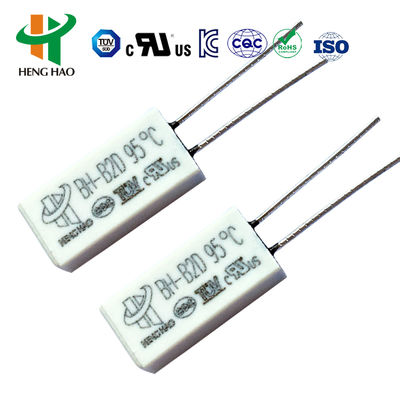

H20 KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles Plastic Case Bimetallic Thermostat 2 H20 KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles Plastic Case Bimetallic Thermostat 3 H20 KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles Plastic Case Bimetallic Thermostat 4 H20 KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles Plastic Case Bimetallic Thermostat 5
This product holds UL, CQC, TUV and RoHS certification approvals.
