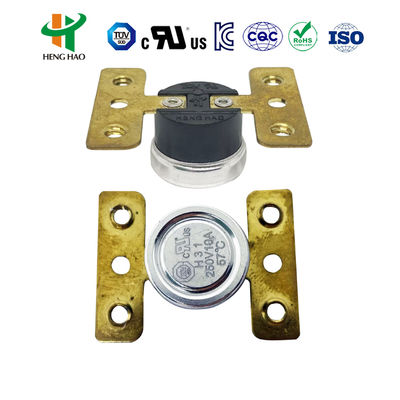

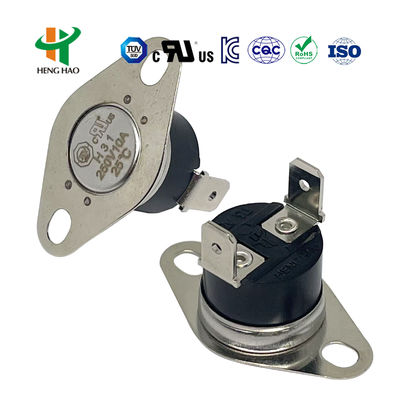

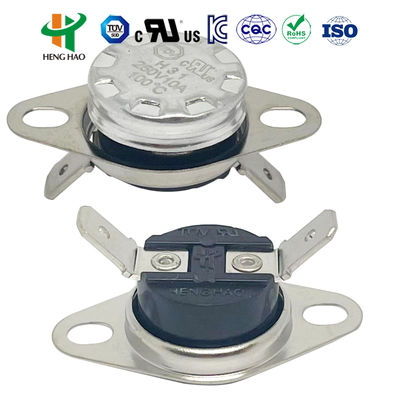

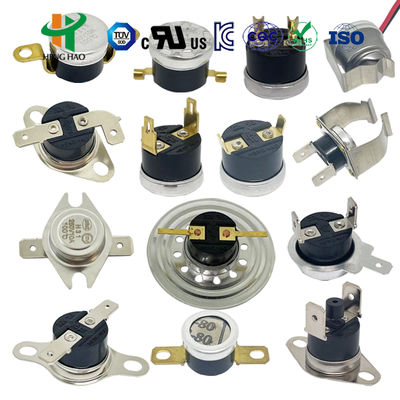

KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life

KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life
KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life
KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life

تصویر بزرگ :  KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life

جزئیات محصول:
محل منبع: چین
نام تجاری: HENGHAO
گواهی: UL
شماره مدل: KSD201
پرداخت:
مقدار حداقل تعداد سفارش: 1000
قیمت: USD 0.15
جزئیات بسته بندی: 2100 عدد / کارتن
زمان تحویل: 15 ~ 15 Workdays
شرایط پرداخت: t/t
قابلیت ارائه: 100000 قطعه در ماه
مخاطب

KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life

شرح
چرخه حیات: 100000 چرخه ولتاژ و جریان: 250 ولت 16a
نوع تماس: به طور معمول بسته یا به طور معمول باز است نوع سوئیچ: تنظیم مجدد خودکار یا تنظیم مجدد دستی
برجسته کردن:

Plastic or Ceramic Housing KSD301 Bimetal Thermostat,Aluminum Cap or Copper Head Temperature Protector,100000 Cycles Temperature Controlled Switch

,

Aluminum Cap or Copper Head Temperature Protector

,

100000 Cycles Temperature Controlled Switch

Temperature Controlled Switch KSD301-R Temperature Protector
The KSD301 series thermostat operates on the principle of bimetal discs that snap into action with temperature changes. This snap action activates internal contacts to open or close circuits. Key features include fixed working temperatures, reliable snap action, minimal flashover, long service life, and reduced radio interference.
KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life 0
KSD301 Thermostat Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open
Mounting bracket Two kinds: movable or immovable
Terminal type a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional

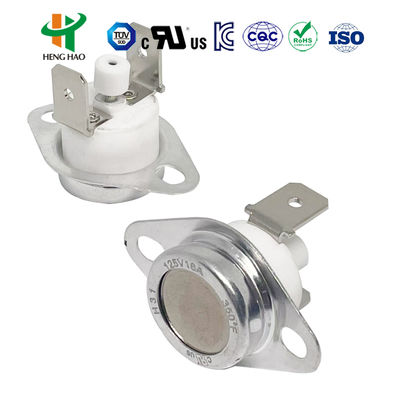

Housing Plastic or ceramic

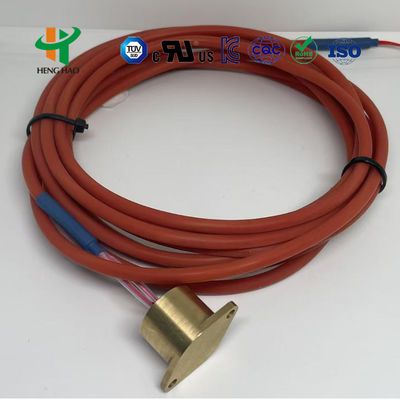

Temperature sensor face Aluminum cap or copper head
KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life 1
KSD301 Auto Reset vs Manual Reset Types
Manual Reset Type
The temperature sensing components consist of bimetallic strips. When reaching the action temperature range, the disc jumps quickly to disconnect. The contacts won't reset until the circuit is manually reconnected by pressing the reset button (requires 4-6N force). The temperature must decline by 20°C after snap action before resetting. For proper function, maintain at least 20.4mm between reset button and cover.
Auto Reset Type
Similar bimetallic strip components automatically reset when temperature declines to a fixed point, restarting operation without manual intervention.
KSD301 Bimetal Thermostat Applications
Widely used for temperature control in household appliances including:
  • Coffee pots
  • Automatic toasters
  • Laminators
  • Electric water pots
  • Steam guns
  • Steam irons
  • Wind warmers
  • Microwave ovens
  • Water dispensers
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
Custom temperature settings available according to client requirements
This product has UL, CQC, TUV and RoHS certification approval.
KSD301 Bimetal Thermostat Temperature Protector with Plastic or Ceramic Housing Aluminum Cap or Copper Head and 100000 Cycles Life 2
