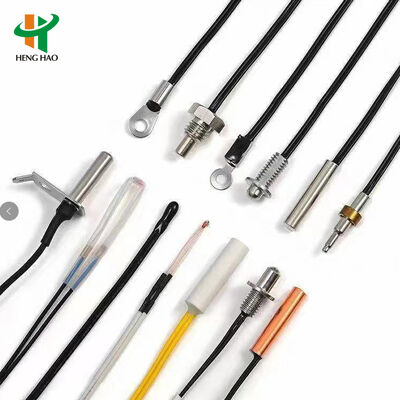

1K, 5K, 10K, 50K, 100K … . Ntc Temperature Sensor Thermistor Temperature Probe

1K, 5K, 10K, 50K, 100K … . Ntc Temperature Sensor Thermistor Temperature Probe
1K, 5K, 10K, 50K, 100K … . Ntc Temperature Sensor Thermistor Temperature Probe 1K, 5K, 10K, 50K, 100K … . Ntc Temperature Sensor Thermistor Temperature Probe 1K, 5K, 10K, 50K, 100K … . Ntc Temperature Sensor Thermistor Temperature Probe 1K, 5K, 10K, 50K, 100K … . Ntc Temperature Sensor Thermistor Temperature Probe 1K, 5K, 10K, 50K, 100K … . Ntc Temperature Sensor Thermistor Temperature Probe 1K, 5K, 10K, 50K, 100K … . Ntc Temperature Sensor Thermistor Temperature Probe

تصویر بزرگ :  1K, 5K, 10K, 50K, 100K … . Ntc Temperature Sensor Thermistor Temperature Probe

جزئیات محصول: پرداخت:
مقدار حداقل تعداد سفارش: 1000
قیمت: 0.25
مخاطب

1K, 5K, 10K, 50K, 100K … . Ntc Temperature Sensor Thermistor Temperature Probe

شرح
مقاومت اسمی: 5k ، 8k ، 10k ، 15k تا 100k واریانس مقاومت: 1 ± ، 2 ± ، 3 ± ، 5 ± ، 10 ±
ضریب ماده: 2500 ~ 5000k واریانس ضریب: 1 ± ، 2 ±
ضریب اتلاف: ≥0.8mw/ºC زمان حرارتی ثابت: 25s
دمای کاری: -40ºC~+250ºC قدرت امتیازی: 50 میلی وات
نوع مورد: سر چنگال، سر حلقه ای، سر قطره آب، محفظه فلزی، محفظه مسی نخ، سر تزریق سیم سربی: #24 30# 2651، UL4411 28#، هادی دو سیمی
نوع تماس: به طور معمول بسته یا به طور معمول باز است نوع سوئیچ: تنظیم مجدد خودکار یا تنظیم مجدد دستی
ابعاد: 12*16 بسته حمل و نقل: 2000pcs/کارتن
ظرفیت تولید: 100000000
برجسته کردن:

NTC thermistor temperature sensor probe,1K to 100K thermistor temperature sensor,NTC temperature probe with warranty

,

1K to 100K thermistor temperature sensor

,

NTC temperature probe with warranty

NTC Temperature Sensor Thermistor Temperature Probe
Product Specifications
Specification Name Scope Detection Condition
R25 (nominal resistance value) 5K, 8K, 10K, 15K to 100K Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%) ±1, ±2, ±3, ±5, ±10 Constant temperature 25ºC±0.05ºC
B25/50 or B25/85 (material coefficient) 2500~5000K Constant temperature 25ºC±0.05ºC
Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%) ±1, ±2 Constant temperature 25ºC±0.05ºC
Constant temperature 50ºC±0.05ºC
∫ (dissipation coefficient) ≥0.8mw/ºC Static in the air
T (thermal time constant) ≤25S Static in the air
Ta (Working temperature) -40ºC~+250ºC
Pn (rated power) 50mw Within working temperature
Configuration Options

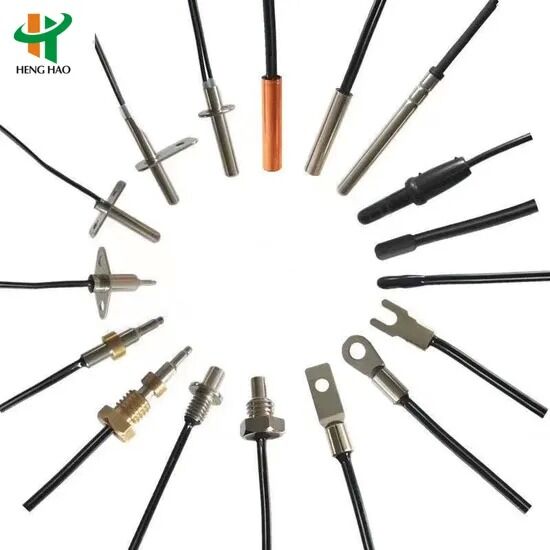

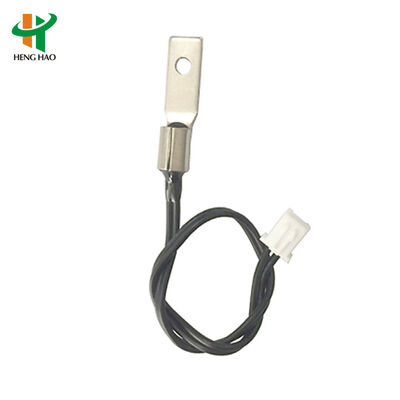

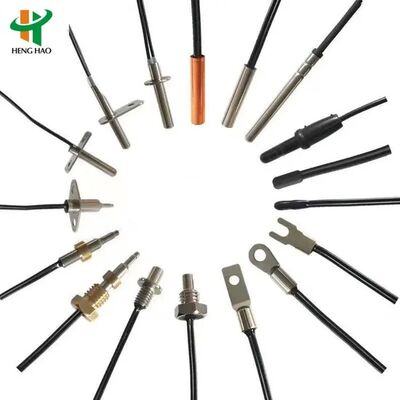

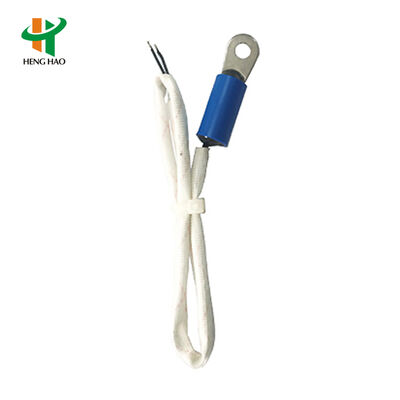

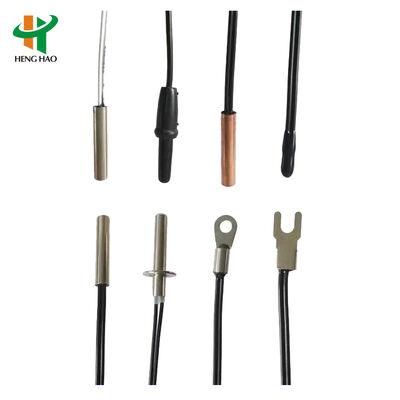

  • Case and head: Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
  • Lead wire: #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request
  • Terminal: Can be riveted according to the requirements of various terminals
1K, 5K, 10K, 50K, 100K … . Ntc Temperature Sensor Thermistor Temperature Probe 0 1K, 5K, 10K, 50K, 100K … . Ntc Temperature Sensor Thermistor Temperature Probe 1 1K, 5K, 10K, 50K, 100K … . Ntc Temperature Sensor Thermistor Temperature Probe 2
Customer Service
  • Your inquiry will be replied within 12 hours
  • Well-trained and experienced staff are always at your service
  • Unique design products and many private mold product are waiting for your choice
  • Strictly protect your private information and your ideas of design
Frequently Asked Questions
Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.
Q3. Do you have any MOQ limit for led waterproof string order?
A: At least 1 for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Temperature Specifications
Open temp. Reset temp. Open temp. Reset temp. Open temp. Reset temp.
-20ºC±5ºC 5ºC±5ºC 95ºC±5ºC 80ºC±5ºC 205ºC±5ºC 175ºC±10ºC
-15ºC±5ºC 5ºC±5ºC 100ºC±5ºC 80ºC±10ºC 210ºC±5ºC 180ºC±10ºC
-10ºC±5ºC 5ºC±5ºC 105ºC±5ºC 85ºC±10ºC 215ºC±5ºC 185ºC±10ºC
0ºC±5ºC -10ºC±5ºC 110ºC±5ºC 90ºC±10ºC 220ºC±5ºC 190ºC±10ºC
5ºC±5C -5ºC±5ºC 115ºC±5ºC 95ºC±10ºC 225ºC±5ºC 195ºC±10ºC
Note: Complete temperature specifications available upon request.
Applications

This temperature sensor is widely used in household electric appliances including coffee pots, automatic toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, water dispensers, and more.

1K, 5K, 10K, 50K, 100K … . Ntc Temperature Sensor Thermistor Temperature Probe 3 1K, 5K, 10K, 50K, 100K … . Ntc Temperature Sensor Thermistor Temperature Probe 4
