3D Print Mini Ntc Temperature Sensor 3950K 3435K Mini Thermocouple

3D Print Mini Ntc Temperature Sensor 3950K 3435K Mini Thermocouple
3D Print Mini Ntc Temperature Sensor 3950K 3435K Mini Thermocouple 3D Print Mini Ntc Temperature Sensor 3950K 3435K Mini Thermocouple 3D Print Mini Ntc Temperature Sensor 3950K 3435K Mini Thermocouple 3D Print Mini Ntc Temperature Sensor 3950K 3435K Mini Thermocouple 3D Print Mini Ntc Temperature Sensor 3950K 3435K Mini Thermocouple 3D Print Mini Ntc Temperature Sensor 3950K 3435K Mini Thermocouple

تصویر بزرگ :  3D Print Mini Ntc Temperature Sensor 3950K 3435K Mini Thermocouple

جزئیات محصول:
گواهی: RoHS
پرداخت:
مقدار حداقل تعداد سفارش: 1000
قیمت: 0.5
مخاطب

3D Print Mini Ntc Temperature Sensor 3950K 3435K Mini Thermocouple

شرح
شماره مدل: NTC نوع تماس: بدون تماس
سیگنال خروجی: ترمیستور روند تولید: تزریق
مواد: لیتیوم کلرید مقاومتی رتبه بندی IP: IP65
نوع سر: لوله فلزی یا پلاستیکی ارزش B: 3950K 3435K 3977K PT100
مقاومت اسمی: 5k ، 8k ، 10k ، 15k تا 100k دمای کاری: -40ºC~+250ºC
قدرت امتیازی: 50 میلی وات زمان حرارتی ثابت: 25s
ضریب اتلاف: ≥0.8mw/ºC درجه دقت: درجه A (0.1)، درجه B (0.3)، درجه 2B (0.5)، درجه 1/3 B (0.1)
محدوده دما: -50 تا 500 درجه سانتیگراد
برجسته کردن:

Mini NTC temperature sensor 3950K,3D print thermocouple sensor 3435K,NTC thermistor sensor with warranty

,

3D print thermocouple sensor 3435K

,

NTC thermistor sensor with warranty

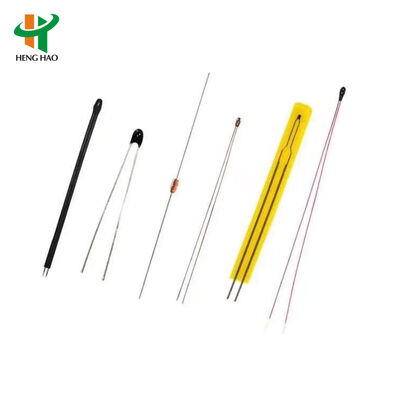

3D Print Mini NTC Temperature Sensor 3950K 3435K Mini Thermocouple
NTC Temperature Sensor Specifications
Specification Name Scope Detection Condition
R25 (nominal resistance value) 5K, 8K, 10K, 15K to 100K Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%) ±1, ±2, ±3, ±5, ±10 Constant temperature 25ºC±0.05ºC
B25/50 or B25/85 (material coefficient) 2500~5000K Constant temperature 25ºC±0.05ºC
Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%) ±1, ±2 Constant temperature 25ºC±0.05ºC
Constant temperature 50ºC±0.05ºC
∫ (dissipation coefficient) ≥0.8mw/ºC Static in the air
T (thermal time constant) ≤25S Static in the air
Ta (Working temperature) -40ºC~+250ºC
Pn (rated power) 50mw Within working temperature

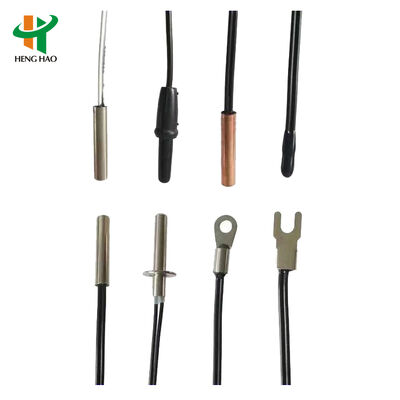

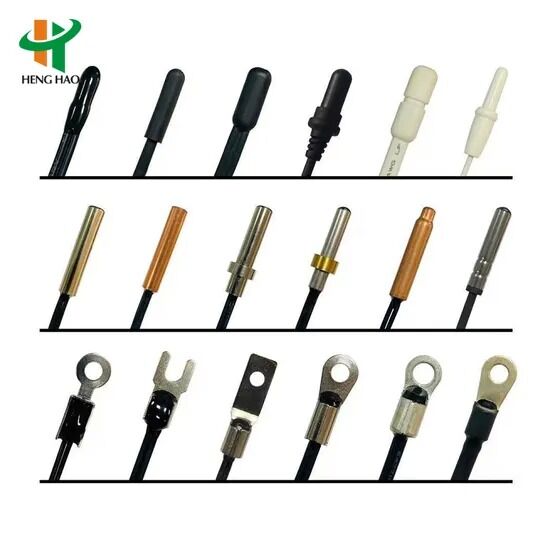

Case and head Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
Lead wire #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request
Terminal Can be riveted according to the requirements of various terminals
PT100/PT500/PT1000 Temperature Sensor
Product name PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number PT100, CU50, PT1000, K, E, J, T etc.
Temperature range -50 to 500ºC
Chip imported from Heraeus - Germany

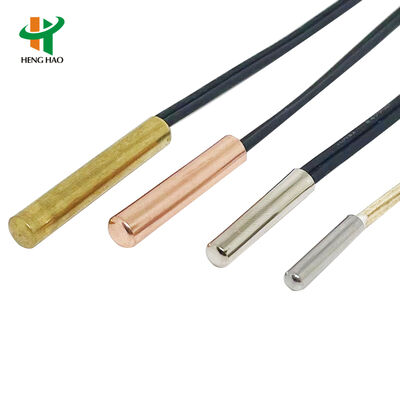

Temperature probe 304 stainless steel, plastic or other according to client's request
Accuracy Grade A Grade (0.1), B Grade(0.3), 2B Grade (0.5), 1/3 B Grade(0.1)
Temperature probe size 4*30mm, or according to client's request to design
Thermal time constant 0.5S
Lead wire Three core sliver tetrafluoride shielded wire (-50~200ºC)
Silicone wire (-200~200ºC)
Three core high temperature wire (-40~450ºC)
Four fluorine wire (-50~150ºC)
Diameter 3mm~16mm
Terminal Y type, Pin, XH2.54 or according to client's request
Level of protection IP68
3D Print Mini Ntc Temperature Sensor 3950K 3435K Mini Thermocouple 0 3D Print Mini Ntc Temperature Sensor 3950K 3435K Mini Thermocouple 1 3D Print Mini Ntc Temperature Sensor 3950K 3435K Mini Thermocouple 2 3D Print Mini Ntc Temperature Sensor 3950K 3435K Mini Thermocouple 3
Our Services
  • Your inquiry will be replied within 12 hours
  • Well-trained and experienced staff are always at your service
  • Unique design products and many private mold product are waiting for your choice
  • Strictly protect your private information and your ideas of design
Frequently Asked Questions
Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.
Q3. Do you have any MOQ limit for led waterproof string order?
A: At least 1 for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
3D Print Mini Ntc Temperature Sensor 3950K 3435K Mini Thermocouple 4 3D Print Mini Ntc Temperature Sensor 3950K 3435K Mini Thermocouple 5
