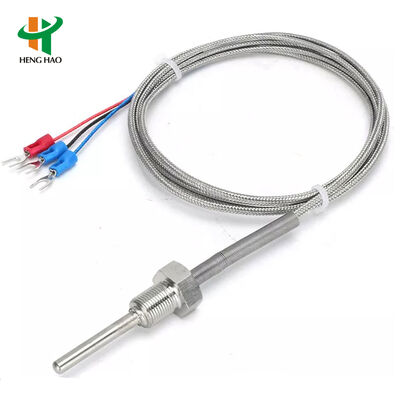

Thread Head Ntc Temperature Sensor PT100 R J Thermocouple Thermal Sensor Switch

Thread Head Ntc Temperature Sensor PT100 R J Thermocouple Thermal Sensor Switch
Thread Head Ntc Temperature Sensor PT100 R J Thermocouple Thermal Sensor Switch Thread Head Ntc Temperature Sensor PT100 R J Thermocouple Thermal Sensor Switch Thread Head Ntc Temperature Sensor PT100 R J Thermocouple Thermal Sensor Switch Thread Head Ntc Temperature Sensor PT100 R J Thermocouple Thermal Sensor Switch Thread Head Ntc Temperature Sensor PT100 R J Thermocouple Thermal Sensor Switch Thread Head Ntc Temperature Sensor PT100 R J Thermocouple Thermal Sensor Switch

تصویر بزرگ :  Thread Head Ntc Temperature Sensor PT100 R J Thermocouple Thermal Sensor Switch

جزئیات محصول:
گواهی: RoHS
پرداخت:
مقدار حداقل تعداد سفارش: 1000
قیمت: 0.5
مخاطب

Thread Head Ntc Temperature Sensor PT100 R J Thermocouple Thermal Sensor Switch

شرح
شماره مدل: NTC PT100 نوع تماس: بدون تماس
سیگنال خروجی: ترمیستور روند تولید: تزریق
مواد: لیتیوم کلرید مقاومتی رتبه بندی IP: IP65
نوع سر: لوله فلزی یا پلاستیکی ارزش B: 3950K 3435K 3977K PT100
مقاومت اسمی: 5k ، 8k ، 10k ، 15k تا 100k مقدار B25/50: 2500 ~ 5000k
ضریب اتلاف: ≥0.8mw/ºC زمان حرارتی ثابت: 25s
دمای کاری: -40ºC~+250ºC قدرت امتیازی: 50 میلی وات
محدوده دما: -50 تا 500 درجه سانتیگراد
برجسته کردن:

Thread Head NTC temperature sensor,PT100 thermal sensor switch,R J thermocouple temperature probe

,

PT100 thermal sensor switch

,

R J thermocouple temperature probe

Thread Head NTC Temperature Sensor PT100 R J Thermocouple Thermal Sensor Switch
NTC Temperature Sensor
Specification Name Scope Detection Condition
R25(nominal resistance value) 5K,8K,10K,15K to 100K Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%) ±1,±2, ±3, ±5, ±10 Constant temperature 25ºC±0.05ºC
B25/50 or B25/85(material coefficient)(thermal-sensitivity index) 2500~5000K Constant temperature 25ºC±0.05ºC
Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%) ±1,±2 Constant temperature 25ºC±0.05ºC
Constant temperature 50ºC±0.05ºC
∫(dissipation coefficient) ≥0.8mw/ºC Static in the air
T(thermal time constant) ≤25S Static in the air
Ta(Working temperature) -40ºC~+250ºC
Pn (rated power) 50mw within working temperature

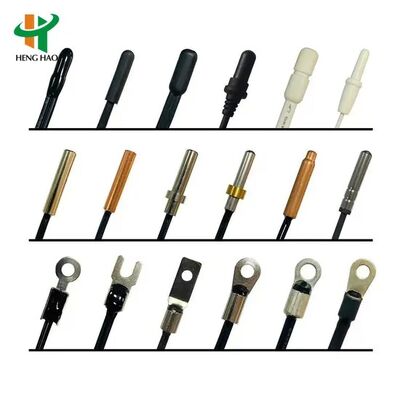

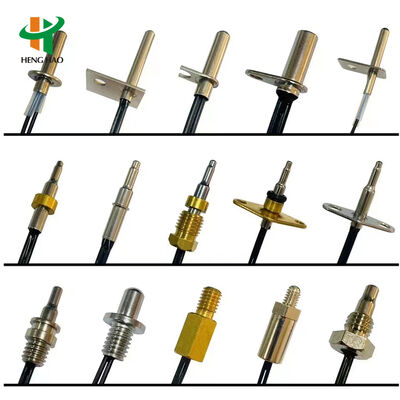

Case and head Fork head, O ring head,drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
Lead wire #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request.
Terminal Can be riveted according to the requirements of various terminals
PT100/PT500/PT1000 Temperature Sensor
Product name PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number PT100, CU50,PT1000,K,E,J,T etc.
Temperature range -50 to 500ºC
Chip imported from Heraeus - Germany
Temperature probe 304 stainless steel, plastic or other according to client's request
Accuracy Grade A Grade (0.1),B Grade(0.3),2B Grade (0.5),1/3 B Grade(0.1)
Temperature probe 4*30mm, or according to client's request to design.
Thermal time constant 0.5S
Lead wire Three core sliver tetrafluoride shielded wire (-50~200ºC)
Silicone wire(-200~200ºC)
Three core high temperature wire(-40~450ºC)
Four fluorine wire (-50~150ºC)
Dia 3mm~16mm
terminal Y type, Pin,XH2.54 or according to client's request.
Level of protection IP68

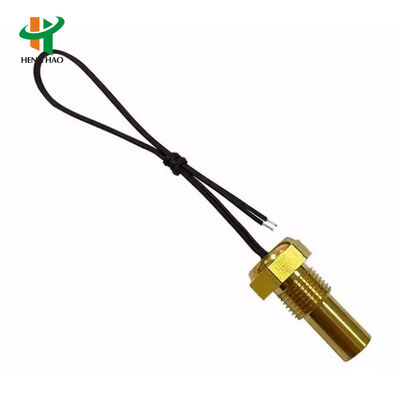

Thread Head Ntc Temperature Sensor PT100 R J Thermocouple Thermal Sensor Switch 0

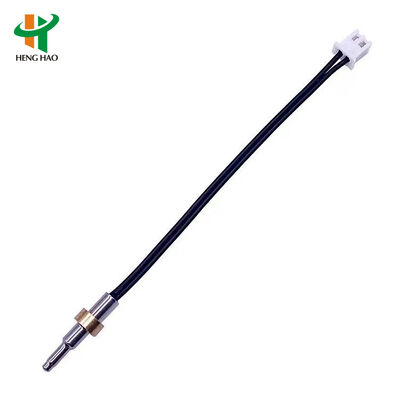

Thread Head Ntc Temperature Sensor PT100 R J Thermocouple Thermal Sensor Switch 1

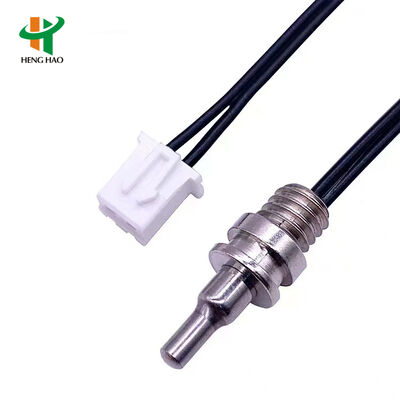

Thread Head Ntc Temperature Sensor PT100 R J Thermocouple Thermal Sensor Switch 2
Thread Head Ntc Temperature Sensor PT100 R J Thermocouple Thermal Sensor Switch 3
Services
  • Your inquiry will be replied within 12 hours
  • Well-trained and experienced staff are always at your service
  • Unique design products and many private mold product are waiting for your choice
  • Strictly protect your private information and your ideas of design
FAQ
Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.
Q3. Do you have any MOQ limit for led waterproof string order?
A: At least 1 for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Thread Head Ntc Temperature Sensor PT100 R J Thermocouple Thermal Sensor Switch 4
Thread Head Ntc Temperature Sensor PT100 R J Thermocouple Thermal Sensor Switch 5
