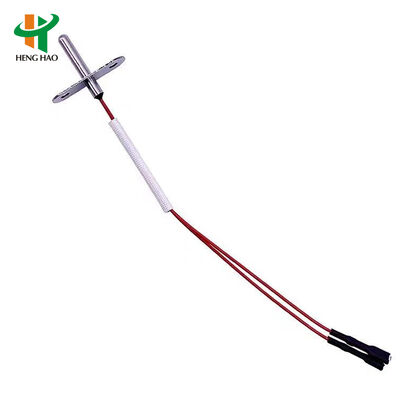

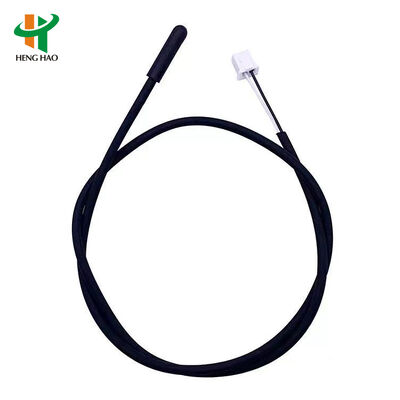

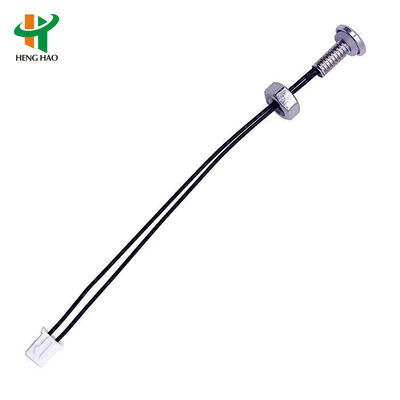

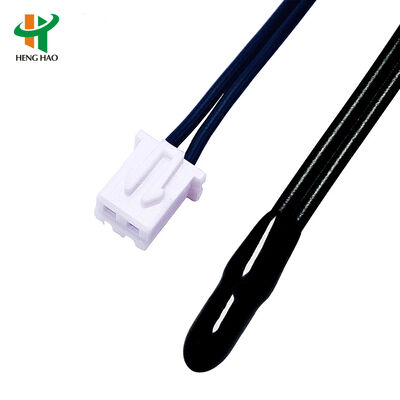

PT100 Temperature Sensing Wire Harness Ntc Temperature Probe Sensor

تصویر بزرگ : PT100 Temperature Sensing Wire Harness Ntc Temperature Probe Sensor

جزئیات محصول:

گواهی:	UL

پرداخت:

مقدار حداقل تعداد سفارش:	1000
قیمت:	0.2

مخاطب

PT100 Temperature Sensing Wire Harness Ntc Temperature Probe Sensor

شرح

شماره مدل:	NTC	سیگنال خروجی:	نوع دیجیتال
روند تولید:	اپوکسی	مواد:	فلز پلاستیک یا مس
اندازه گیری محیط:	دما	مقدار NTC:	3950K 3977K 3435K 3900K
ارزش PT:	PT100، PT500، PT1000	اندازه سیم:	#26 #24 #22 2651 2468 1332...
نوع ترمینال:	2.54، pH2.0 طبق درخواست مشتری	محدوده دما:	-10-500c
مقاومت اسمی:	5k ، 8k ، 10k ، 15k تا 100k	ضریب ماده:	2500 ~ 5000k
ضریب اتلاف:	≥0.8mw/ºC	زمان حرارتی ثابت:	25s
دمای کاری:	-40ºC~+250ºC
برجسته کردن:	PT100 temperature sensor wire harness,NTC temperature probe sensor,thermistor temperature sensor with warranty , NTC temperature probe sensor , thermistor temperature sensor with warranty

PT100 Temperature Sensing Wire Harness NTC Temperature Probe Sensor

NTC Temperature Sensor Specifications

Specification Name	Scope	Detection Condition
R25 (nominal resistance value)	5K, 8K, 10K, 15K to 100K	Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%)	±1, ±2, ±3, ±5, ±10	Constant temperature 25ºC±0.05ºC
B25/50 or B25/85 (material coefficient)	2500~5000K	Constant temperature 25ºC±0.05ºC Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%)	±1, ±2	Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC
∫ (dissipation coefficient)	≥0.8mw/ºC	Static in the air
T (thermal time constant)	≤25S	Static in the air
Ta (Working temperature)	-40ºC~+250ºC
Pn (rated power)	50mw	Within working temperature

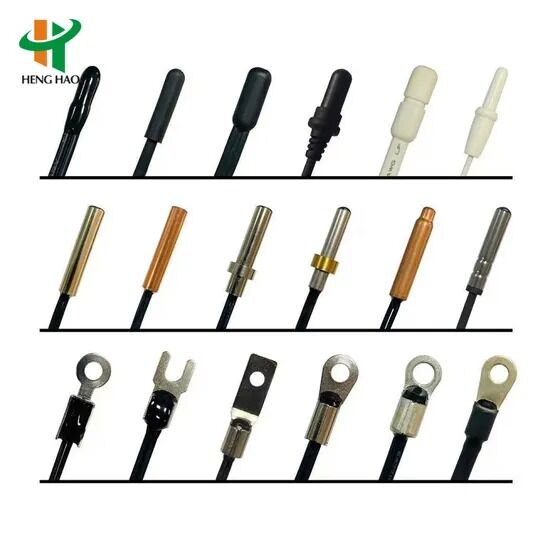

Case and head: Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing

Lead wire: #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request

Terminal: Can be riveted according to the requirements of various terminals

PT100/PT500/PT1000 Temperature Sensor

Product name	Specification
PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number	PT100, CU50, PT1000, K, E, J, T etc.
Temperature range	-50 to 500ºC
Chip imported from	Heraeus - Germany
Temperature probe	304 stainless steel, plastic or other according to client's request
Accuracy Grade	A Grade (0.1), B Grade(0.3), 2B Grade (0.5), 1/3 B Grade(0.1)
Temperature probe size	4*30mm, or according to client's request to design
Thermal time constant	0.5S
Lead wire options	Three core sliver tetrafluoride shielded wire (-50~200ºC) Silicone wire (-200~200ºC) Three core high temperature wire (-40~450ºC) Four fluorine wire (-50~150ºC)
Diameter	3mm~16mm
Terminal options	Y type, Pin, XH2.54 or according to client's request
Level of protection	IP68
