Temperature Sensor Ntc Temperature Probe Thermistor

Temperature Sensor Ntc Temperature Probe Thermistor
Temperature Sensor Ntc Temperature Probe Thermistor Temperature Sensor Ntc Temperature Probe Thermistor Temperature Sensor Ntc Temperature Probe Thermistor Temperature Sensor Ntc Temperature Probe Thermistor Temperature Sensor Ntc Temperature Probe Thermistor Temperature Sensor Ntc Temperature Probe Thermistor

تصویر بزرگ :  Temperature Sensor Ntc Temperature Probe Thermistor

جزئیات محصول:
گواهی: CE
پرداخت:
مقدار حداقل تعداد سفارش: 1000
قیمت: 0.35
مخاطب

Temperature Sensor Ntc Temperature Probe Thermistor

شرح
شماره مدل: NTC سیگنال خروجی: نوع دیجیتال
روند تولید: پیچیدگی سیم معمولی مواد: سرامیک
اندازه گیری محیط: رطوبت رتبه بندی IP: IP67
چرخه حیات: 10000 چرخه ولتاژ و جریان: 9 ولت 0.1 آمپر
نوع تماس: به طور معمول بسته یا به طور معمول باز است نوع سوئیچ: تنظیم مجدد خودکار یا تنظیم مجدد دستی
محدوده دما: 0-250 ℃ مورد: فلز
مشخصات: 15*16 مقاومت اسمی: 5k ، 8k ، 10k ، 15k تا 100k
دمای کاری: -40ºC~+250ºC
برجسته کردن:

NTC thermistor temperature probe,NTC temperature sensor probe,thermistor temperature sensor with warranty

,

NTC temperature sensor probe

,

thermistor temperature sensor with warranty

NTC Temperature Sensor Probe Thermistor
High-precision NTC temperature sensor probe with various configuration options for industrial and commercial applications.

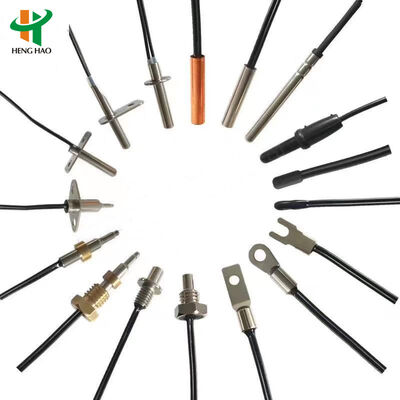

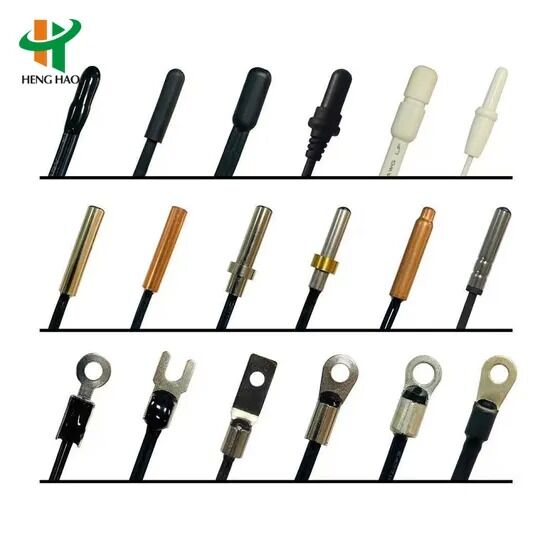

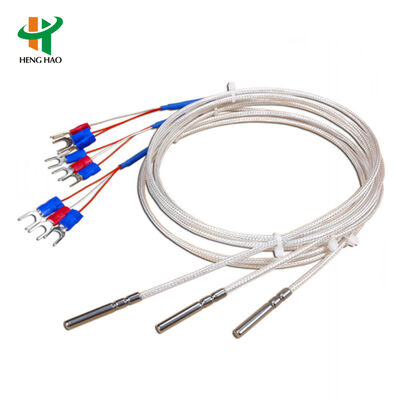

Temperature Sensor Ntc Temperature Probe Thermistor 0 Temperature Sensor Ntc Temperature Probe Thermistor 1 Temperature Sensor Ntc Temperature Probe Thermistor 2
Technical Specifications
Specification Name Scope Detection Condition
R25 (nominal resistance value) 5K, 8K, 10K, 15K to 100K Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%) ±1, ±2, ±3, ±5, ±10 Constant temperature 25ºC±0.05ºC
B25/50 or B25/85 (material coefficient) 2500~5000K Constant temperature 25ºC±0.05ºC
Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%) ±1, ±2 Constant temperature 25ºC±0.05ºC
Constant temperature 50ºC±0.05ºC
∫ (dissipation coefficient) ≥0.8mw/ºC Static in the air
T (thermal time constant) ≤25S Static in the air
Ta (Working temperature) -40ºC~+250ºC
Pn (rated power) 50mw Within working temperature
Configuration Options
  • Case and head: Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or custom designs
  • Lead wire: #24 30# 2651, UL4411 28#, double wired conductor, or custom specifications
  • Terminal: Custom riveting available for various terminal requirements
Our Services
  • Quick response to inquiries within 12 hours
  • Experienced technical support team
  • Custom design capabilities and private mold products
  • Strict confidentiality of client information and designs
Frequently Asked Questions
Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: At least 1 for sample checking is available.
Q4. How do you ship the goods?
A: We usually ship by DHL, UPS, FedEx or TNT (3-5 days). Airline and sea shipping also available.
PT100/PT500/PT1000 Temperature Sensor

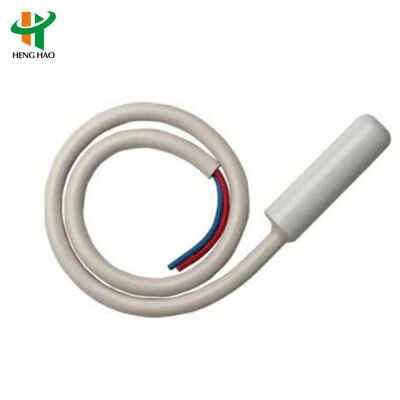

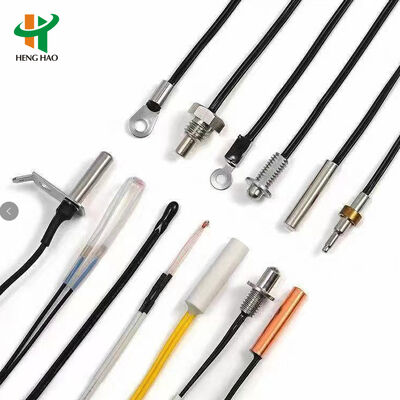

Temperature Sensor Ntc Temperature Probe Thermistor 3 Temperature Sensor Ntc Temperature Probe Thermistor 4

برچسب:

100K NTC Thermistor Temperature Sensor,100K Negative Temperature Coefficient Sensor,Single End Glass Sealed Automotive Thermistor,

NTC thermistor temperature probe,NTC temperature sensor probe,thermistor temperature sensor with warranty,

Single End Glass Sealed Automotive Thermistor
